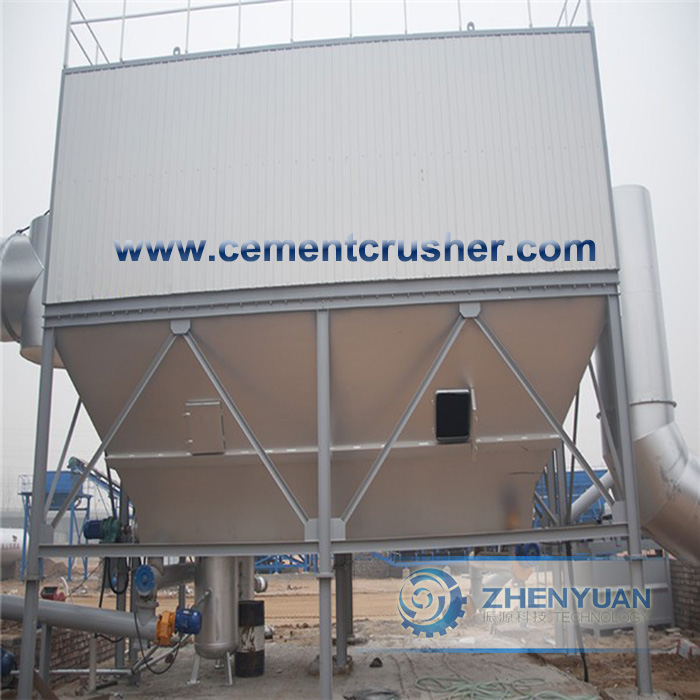

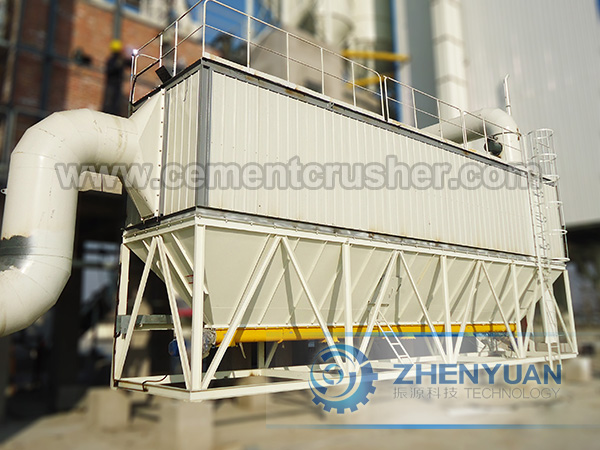

DMC Pulse Bag Dust Collector
Henan Zhenyuan DMC Pulse bag Dust Collector is a kind of decontamination plant which is used to filter gas dust.
It can be used in mining,sand making plant,dry mortar production line, cement industry, chemical industry,power industry and iron steel industry, etc. That is a kind of new type environmental protection equipment.
It has characters like large air flow,small footprint,high efficiency of purification,reliable working performance,simple structure and easy to maintain.The dust collection efficiency can reach to 99%.

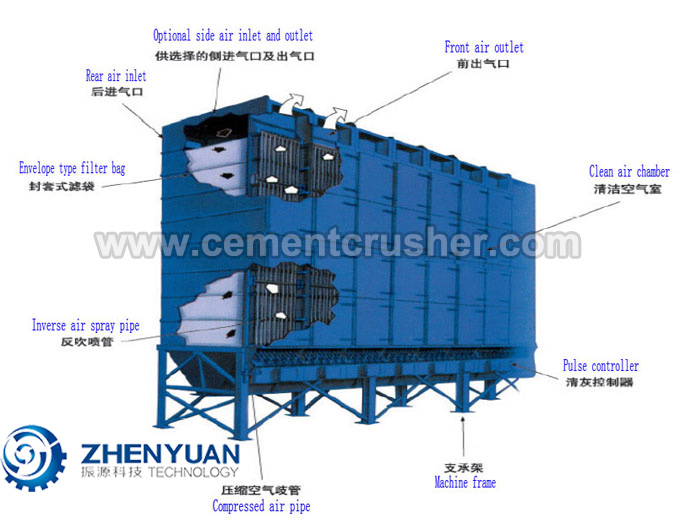

Structure:
Advantage:
- High dust collecting efficiency, low energy consumption.
- Adopt blowback bag type dust collecting technology, making equipment maintenance when the machine is still running.
- Filter bag with long service life as a result of new design dust collecting technology.
- The final discharge gas concentration is less than 50mg/Nm3, reaching national standard of new environmental protection
- With widest application range, reducing further the global environmental pollution
If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.
Technical Data
| Model | Airflow (m3/min) | Filter Area(m2) | Air Speed (m/min) |
Filter Bag Size(mm) | Filter Bag Qty.(piece) | Pulse Valve Qty.(piece) | Motor Power (blower+discharge+screw)(kw) |
| DMC-25 | 1200～1920 | 20 | 1.0～1.6 | φ130×2000 | 25 | 5 | 2.2+1.5+4 |
| DMC-30 | 1500～2400 | 25 | 1.0～1.6 | φ130×2000 | 32 | 5 | 2.2+1.5+4 |
| DMC-36 | 1680～2680 | 28 | 1.0～1.6 | φ130×2000 | 36 | 6 | 3+1.5+4 |
| DMC-49 | 2340～3740 | 39 | 1.0～1.6 | φ130×2000 | 49 | 7 | 3+1.5+4 |
| DMC-64 | 3060～4896 | 51 | 1.0～1.6 | φ130×2000 | 64 | 8 | 5+1.5+4 |
| DMC-80* | 12000～16800 | 80 | 2.5～3.5 | φ130×2500 | 80 | 10 | 15+0.75 |
| DMC-104 | 6032～9500 | 104 | 1.0～1.6 | φ130×2500 | 104 | 13 | 30+1.5+5.5 |
| DMC-104* | 15600～21840 | 104 | 2.5～3.5 | φ130×2500 | 104 | 13 | 15+0.75+4 |
| DMC-112 | 6720～10752 | 112 | 1.0～1.6 | φ130×2500 | 112 | 14 | 45+1.5+5.5 |
| DMC-120* | 18000～25200 | 120 | 2.5～3.5 | φ130×2500 | 120 | 15 | 22+0.75+4 |
| DMC-160 | 9600～15360 | 160 | 1.0～1.6 | φ130×2500 | 160 | 20 | 75+1.5+5.5 |
| DMC-160* | 24000～33600 | 160 | 2.5～3.5 | φ130×2500 | 160 | 20 | 37+0.75+4 |
| DMC-184* | 27600～38640 | 184 | 2.5～3.5 | φ130×2500 | 184 | 23 | 37+0.75+4 |
| DMC-200* | 30000～42000 | 200 | 2.5～3.5 | φ130×2500 | 200 | 25 | 37+0.75+4 |
| DMC-224* | 33600～47040 | 224 | 2.5～3.5 | φ130×2500 | 224 | 28 | 37+0.75+4 |
| DMC-264* | 39600～55440 | 264 | 2.5～3.5 | φ130×2500 | 264 | 33 | 55+0.75+4 |
| DMC-304* | 45600～63840 | 304 | 2.5～3.5 | φ130×2500 | 304 | 38 | 55+0.75+4 |

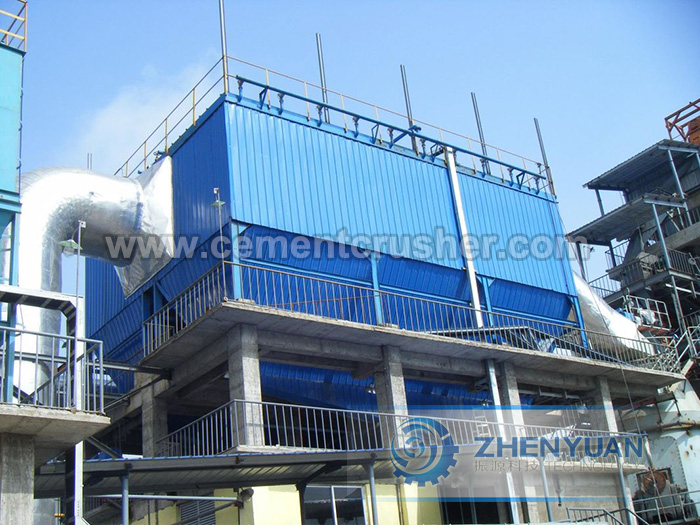

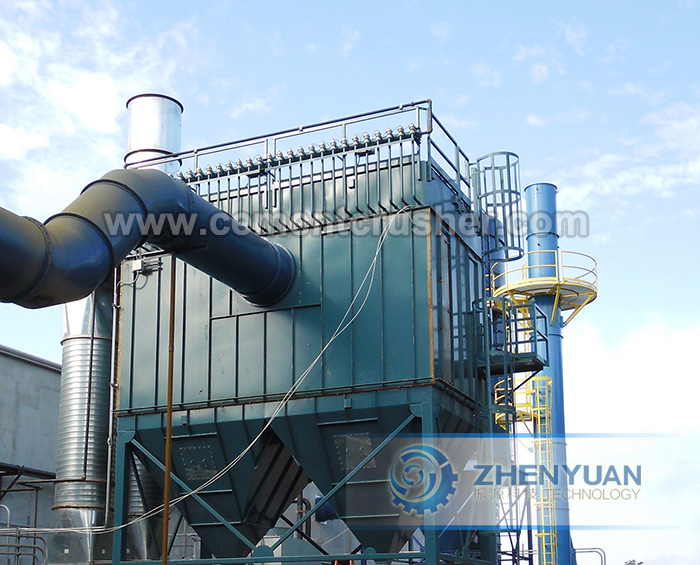

More Pictures
