Scraper Feeder Breaker

Introduction:

Scraper Feeder Breaker is composed of material receiver, crushing, screening and transmission equipment. It has high crushing performance for opening strip mine through optimizing technological process.

It generates a powerful crushing product line by combination of different machine, completes varieties of processing requirements. It has advanced design, excellent performance, high efficiency, easy maintenance, low cost and stable operation.

Scraper Feeder Breaker is mainly applied in Open Pit Coal Mine, Aggregate and Oil Shale etc.

Structure Drawing: feeder breaker drawing2feeder breaker drawing1
Advantage:
  1. Light weight, small volume, especially used in the narrow space.
  2. High crushing ratio, compact structure, easy installation, without requests for civil work and steel structure.
  3. The core components all use international and domestic famous brand, ensure the system reliable running.
  4. Providing complete electrical system, monitoring system and PLC control.
  5. Our feeder breaker has national patent innovation technology. (First Patent No.: ZL201210186682.6, Second Patent No.: 201310076053.7)
After-sales Service:

Provide professional staff training for customers.

  1. Service engineer offers spot training and equipment operation manual.
  2. After-sales personnel visit customers on a regular basis.
  3. Design engineer provides professional service for customers for free.









send inquiry

If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.

Your Name (required)

Your Email (required)

Subject

Your Message

Technical Data
Model Capacity Average Input Size Inlet Port Size Output Finished Product Size
Coal(t/h) H*W*L(mm) H*W(mm) (mm)
TP12 500-1000 800*950*∞ 1790*1350 95%<200
TP14 700-1200 1000*1400*∞ 1790*1550 95%<300
TP16 900-1400 1200*1600*∞ 1790*1750 95%<300
TP20 1100-2500 1200*1800*∞ 1790*2150 95%<300
More Picture
Scraper Feeder Breaker6

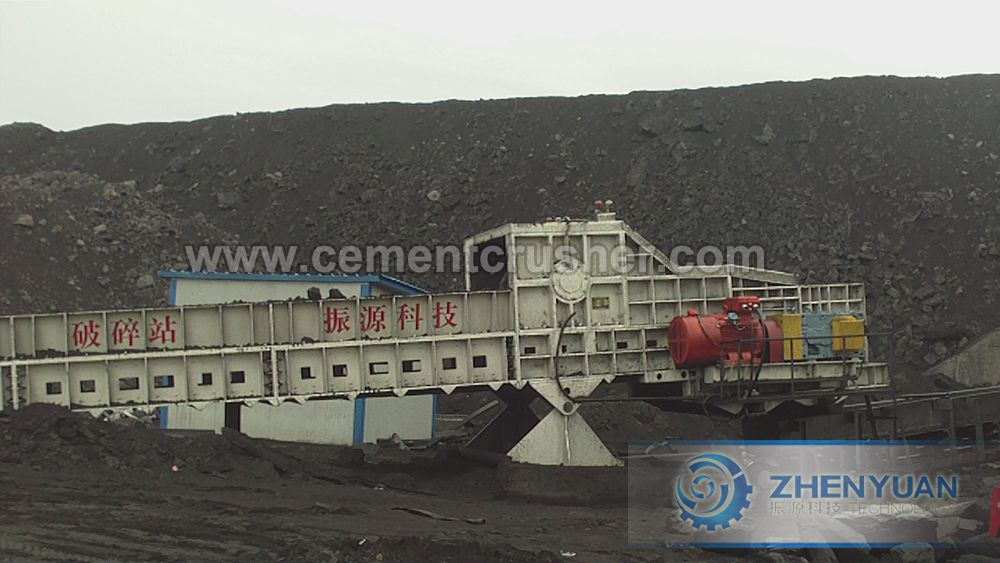

Scraper Feeder Breaker4

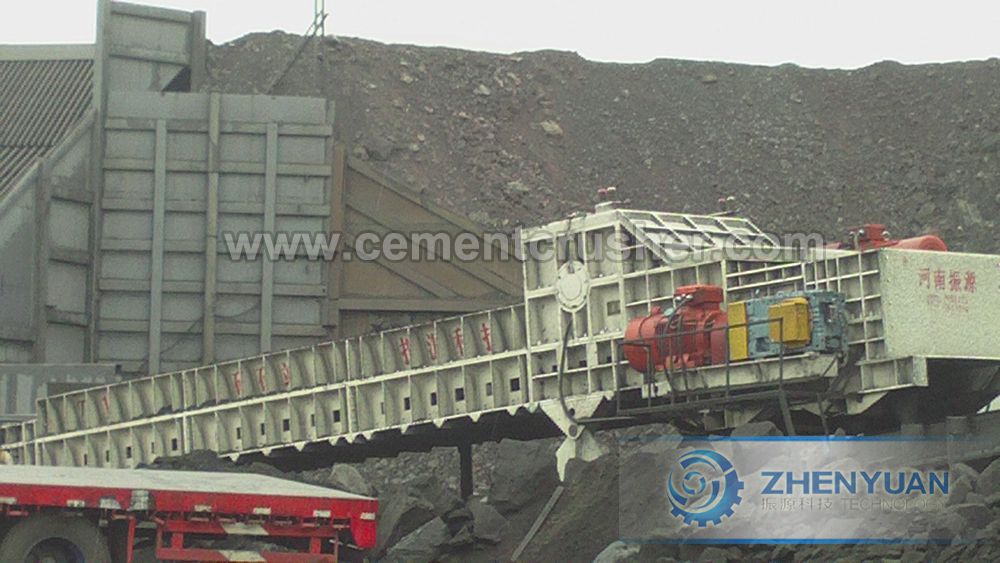

Scraper Feeder Breaker5
