Fine Sand Recycling Machine

General Details

Fine Sand Recycling Machine

Applications:

HX Series Fine Sand Recycling Machine is used in sand cleaning, dewatering and grading. This machine can recycle quantities of fine sand from loss of sand washer in the traditional sand making industry, further improving the economic benefit, lowering down the handling expense of tailings and reducing the environment pollution and destruction which is led to the loss of fine sand. The fine sand recycling machine has been gradually applied in hydropower station sand aggregate processing system, glass raw material processing system, mechanism sand production line and coal preparation plant coarse slime recycling and environmental engineering.

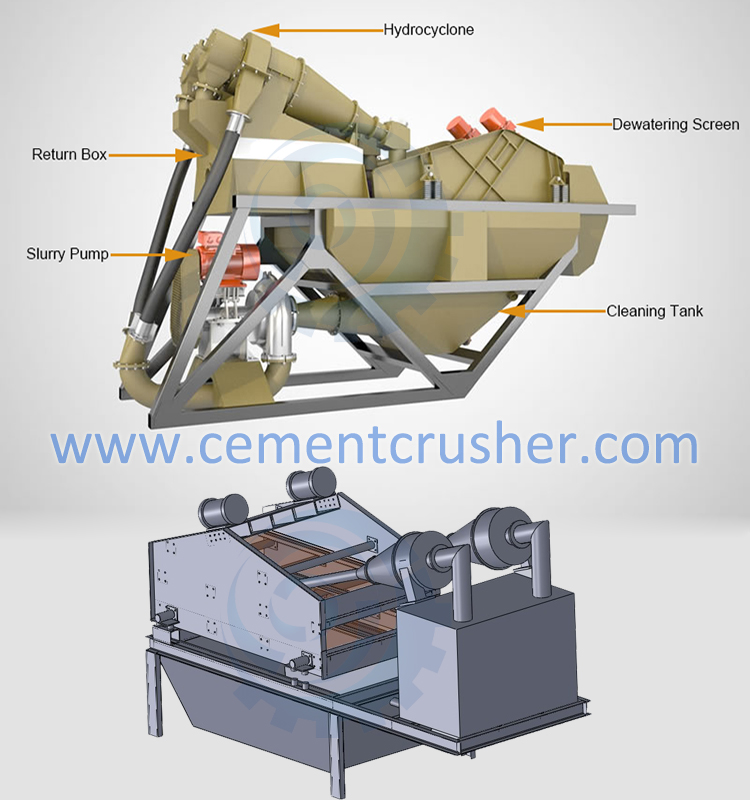

Structure Drawing:

Sand Recycling Machine Drawing



Advantages:
  • Effectively reduce the loss quantity of fine sand, control within 5%-10%; completely solve the problems of high fineness modulus of finished sand and low percentage of stone powder
  • The dewatering screen adopts polyurethane screen mesh with long service life, and it is not easy to be blocked
  • The fine sand is fully recycled, reducing the workload of settling pond and lowering down the cleaning cost of settling pond
  • The hydrocyclones liner has also polyurethane with long service life
  • Recycling maximum 85% fine sand, with unique technology and advantage
  • The machine can be customized as the customers’ request.









send inquiry

If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.

Your Name (required)

Your Email (required)

Subject

Your Message

Technical Data
Fine Sand Recycling Machine Technical Parameters:

Model Slurry Pump

Power(KW)

Hydrocyclones

Dia.(mm)

Dewatering Screen Capacity

(m³/h)

Model Power(KW)
HX22-30 11 300 850*2500 6P-3KW*2 50-80
HX22-50 11*2 250*2 1200*3000 4P-4KW*2 100-160
HX22-60 22*2 300*2 1200*3000 4P-4KW*2 160-230
More Pictures

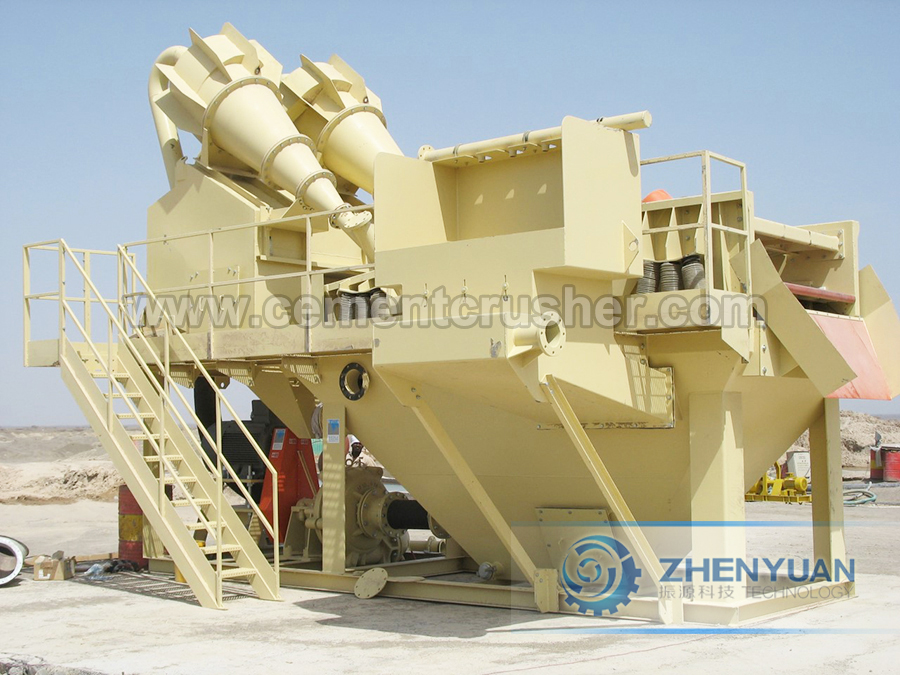

Sand Recycling Machine6

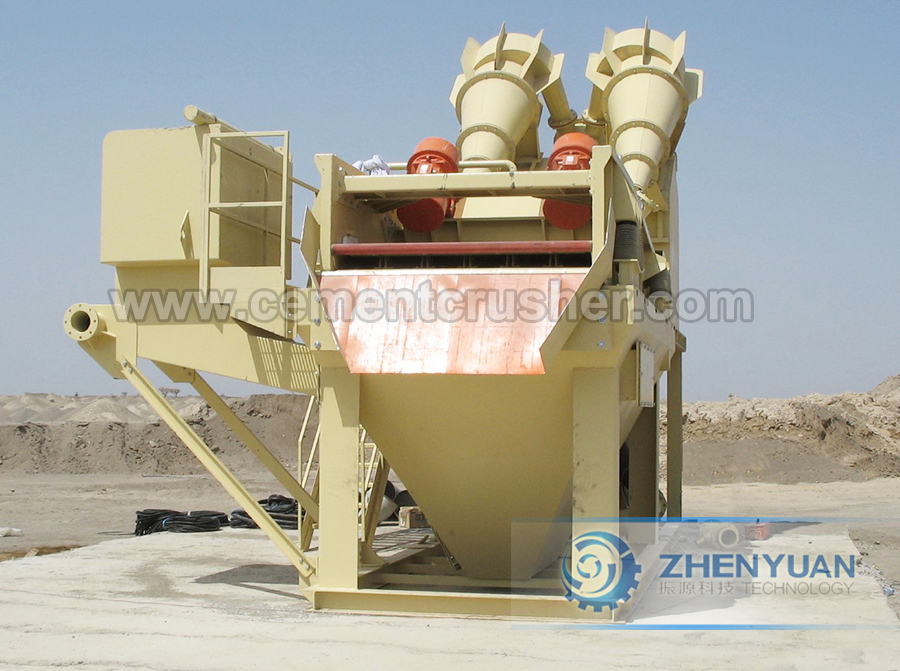

Sand Recycling Machine5

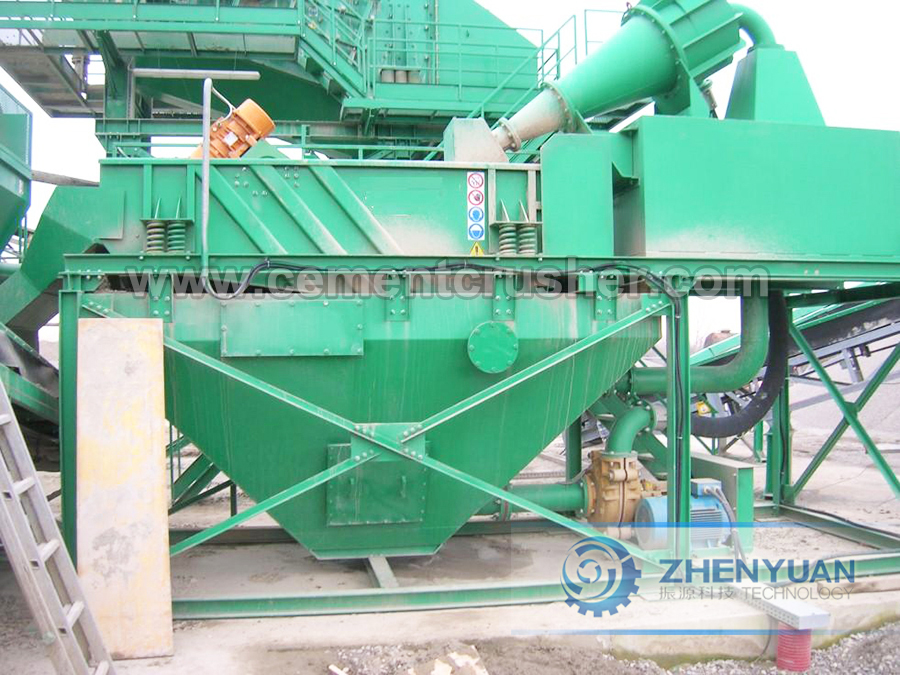

Sand Recycling Machine4
