Hammer Crusher
General Details

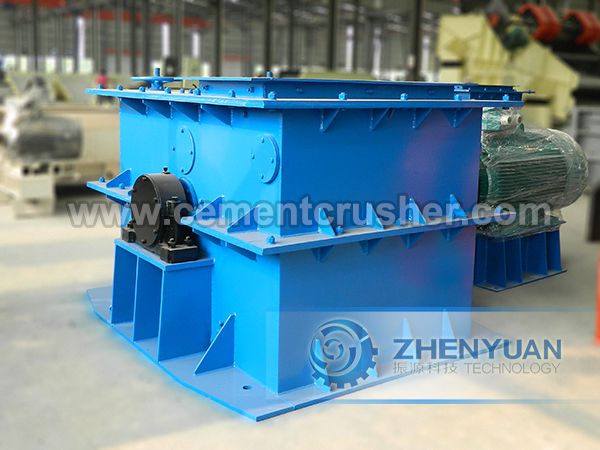

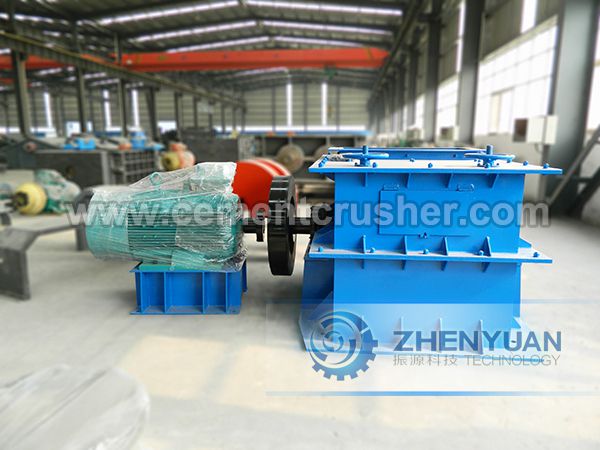

Hammer Crusher / PCH Ring Hammer Crusher
–from Zhenyuan Technology, We since 1964!
Main Function:
Material Crushing and Breaking

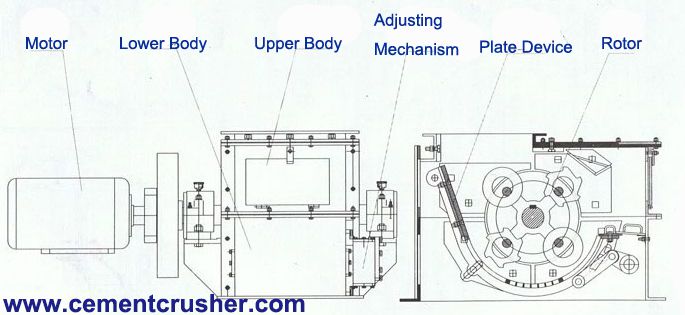

Structure:
Widely Used In:
- Medium hard grade and crispy material (Limestone, Coal, Gangue, Coke, Shale, Red Sandstone, Iron Ore& Gold…)
- When the highest pressure is 100kpa, it can also be used in Concrete, Generate Electricity, Building Material and Components fertilizer.
Our Ring Hammer Crusher makes the crushing easy:
1) Compression Feeder helps constant feed and eliminates bulky item feed trouble.
2) Stable Horizontal Type Shedder (Heavy Duty Construction)
3) Ring-Type Hammer is available for every sort of wastes.
4) Long Hammer-Life
5) Low Horsepower
6) Easy Maintenance by opening upper frame
7) Product Size-control by grate bar clearance
8) Low Fire and Explosion by air blow system
If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.
Technical Data
| Ring Hammer Crusher Technical Data | |||||||
| Model | Max Feed Size(mm) | Discharge Size(mm) | Capacity(t/h) | Speed of motor (r/min) | MotorModel | MotorPower(KW) | Dimension(mm) L×W×H |
| PCH0402 | ≤200 | ≤30 | 8-12 | 970 | Y132M2-6 | 5.5 | 810×890×560 |
| PCH0404 | ≤200 | ≤30 | 16-25 | 970 | Y160L-6 | 11 | 980×890×570 |
| PCH0604 | ≤200 | ≤30 | 16-26 | 970 | Y180L-6 | 15 | 1050×1270×800 |
| PCH0606 | ≤200 | ≤30 | 16-27 | 980 | Y225M-6 | 30 | 1350×1270×180 |
| PCH0808 | ≤200 | ≤30 | 16-28 | 740 | Y280M-8 | 45 | 1750×1620×1080 |
| PCH1010 | ≤200 | ≤30 | 16-29 | 740 | Y315M2-8 | 90 | 2100×2000×1350 |
| PCH1016 | ≤300 | ≤30 | 16-30 | 740 | JS-128-8 | 155 | 2700×2000×1350 |
| PCH1216 | ≤350 | ≤30 | 16-31 | 740 | Y450-8 | 355 | 4965×2500×1600 |
| PCH1322 | ≤400 | ≤30 | 16-32 | 595 | Y450L-8 | 400 | 6333×3295×2505 |

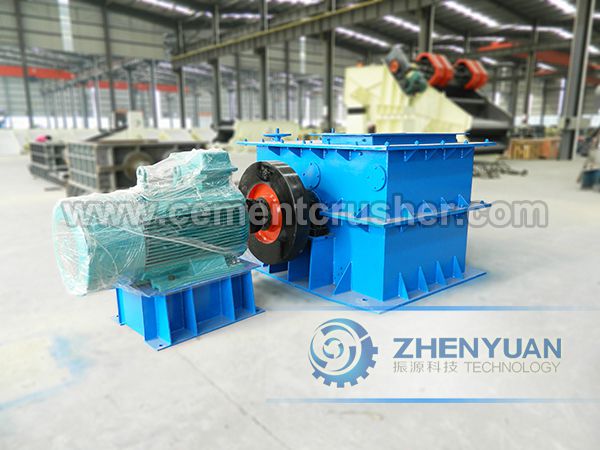

More Pictures
