Mobile Cone Crushing Plant

General Details

Mobile Cone Crushing Plant

Applications:

Zhenyuan Mobile Cone Crushing Plant is widely used in various fields, sand, metallurgy, chemical, construction material, hydroelectric fields to process materials that need to be moved frequently especially in processing the liquid stones for highway, railway, and hydroelectric subjects. It also provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. Customers can equip different configuration according to different processing materials, scale and requirements. The mobile cone crushing plant is especially convenient for operation in a small working site, to process and crush the construction waste.

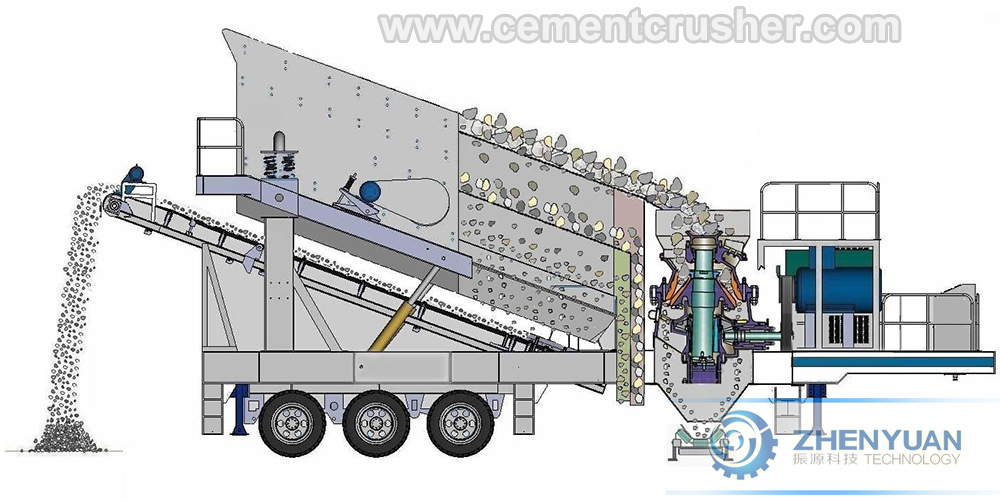

Structural Drawing:

Mobile Cone Crushing Plant Drawing

Excellent Features:
  • It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.
  • Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
  • Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
  • The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. LCD touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.
  • Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.
  • Height of belt conveyor is adjustable. It also can be twisted and folded.
  • Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
  • With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.



send inquiry

If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.

Your Name (required)

Your Email (required)

Subject

Your Message

Technical Data
Mobile Cone Crushing Plant Technical Parameters:

Model MZ3090P900 MZ3090P1200 MZ3090S90 MZ3896S155
Transport Dimension(mm) 11000Х2450Х4500 11800Х2450Х4500 11000Х2450Х4500 11800Х2450Х4500
Cone Crusher Model PY900 PY1200 WKS90 WKS155
Vibrating Feeder Model ZSW300Х90 ZSW300Х90 ZSW300Х90 ZSW380Х96
Belt Conveyor Model B500Х7M B650Х7M B650Х7M B650Х8M
Chassis Number of Axles 2 2 2 3
More Pictures
Mobile Cone Crushing Plant5

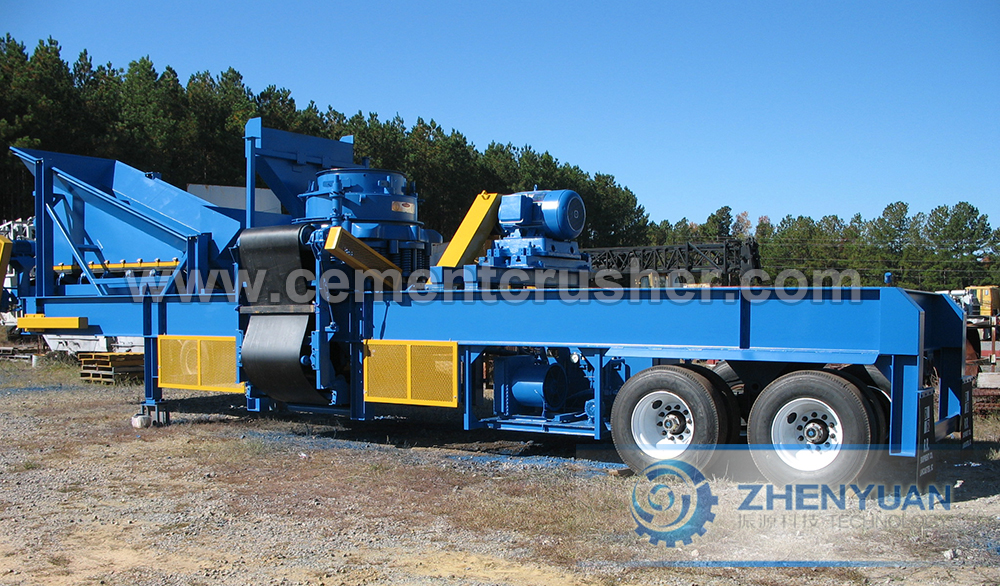

Mobile Cone Crushing Plant6

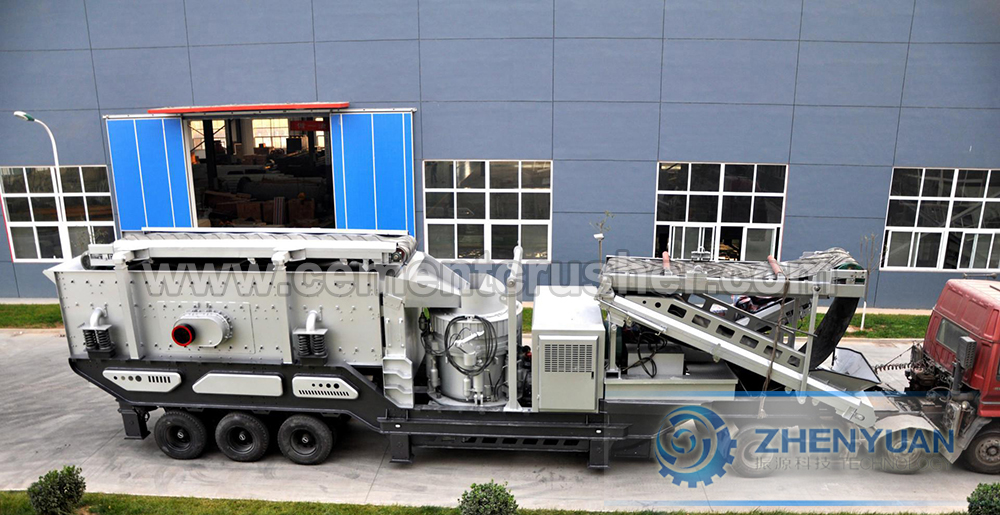

Mobile Cone Crushing Plant4
