Mobile Crushing and Screening Plant

General Details

Mobile Crushing and Screening Plant



Applications:

Zhenyuan Crawler Type Opencast Mine Mobile Crushing and Screening Plant mainly crushes raw coal mine from opencast working, passes the primary crushing, secondary crushing, even tertiary crushing, then enters into screening system, finally reaches the customers’specified size. The whole production line includes Crushing system, Screening system, Feeding system, Conveying system, Electrical system, Crawler undercarriage and Special crawler, etc.

Structure Drawing:

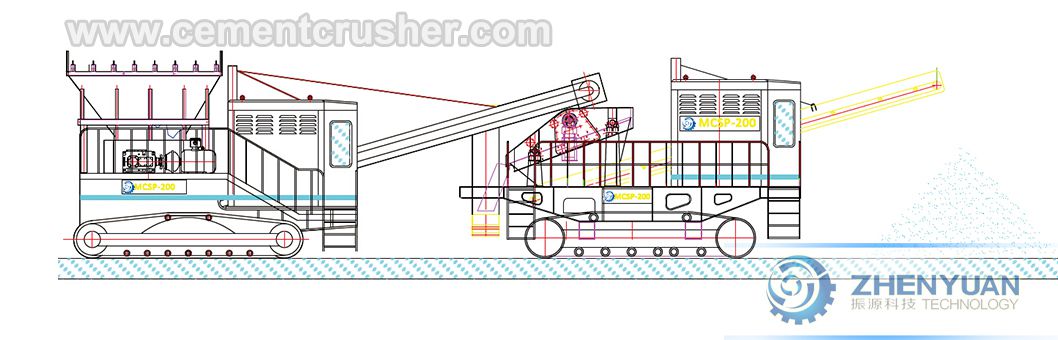

Mobile Crushing and Screening Plant Drawing

Features:
  • Super processing capacity, reach maximum 1200 tons per hour.
  • Diversified product granularity, compact structure and stable operation.
  • Quick installation and adjustment, convenient civil engineering.
  • Crawler type mobile crushing and screening plant key component adopts international famous brand to ensure efficient work.
  • With complete electrical and monitoring system, PLC remote control and high intelligence.
Installation and Delivery:

Strict site three-level quality inspection system

  • Installation captain inspection: Evaluate the installation level of coal crusher plant.
  • Spot QA engineer inspection: Inspect the whole installation process and key components.
  • Service engineer inspection: Inspect the debugging and running condition of whole production line.
Training System:

Provide professional staff training for customers

  • Service engineer offers spot training and production line operation manual.
  • After-sales personnel visit customers on a regular basis.
  • Design engineer provides professional service for customers for free.









send inquiry

If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.

Your Name (required)

Your Email (required)

Subject

Your Message

Technical Data
Crawler Mobile Crushing Plant Technical Parameters:

Model CPSZ300 CPSZ500 CPSZ1000 CPSZ1200
Input Size(mm) ≤500 ≤700 ≤1200 ≤1500
Output Size(mm) 50-80 80-150 ≤300 ≤300
Capacity(t/h) 300 500 1000 1200
More Pictures
Mobile Crushing and Screening Plant3

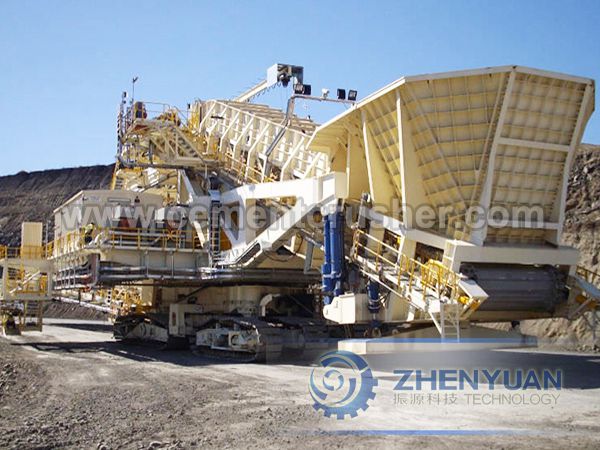

Mobile Crushing and Screening Plant2

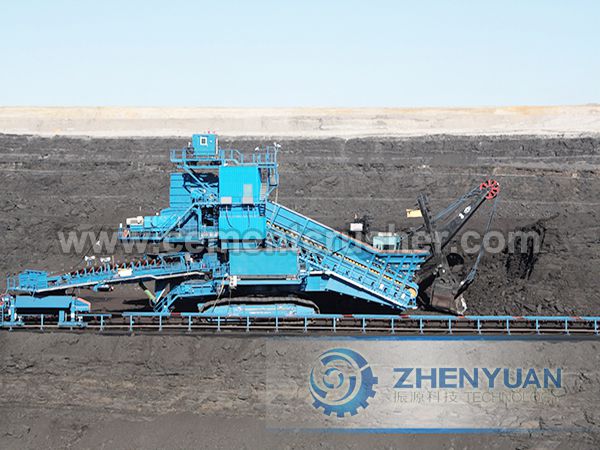

Mobile Crushing and Screening Plant1

FAQ
FAQ:
  1. If the spot coal dust is too much, how to solve?

We can add the dust collector in the whole production line to avoid dust pollution.

  1. If the mining area sand wind is too large, what should be noted in the coal crusher plant?

We should note the strength of steel structure, design the reasonable strength of steel structure.

  1. If the mining area always rains, how to ensure the production line normal operation?

We can design and add rain cover above all equipments.

  1. If the mining area is located in a high altitude, what should be paid attention to?

Electrical system should be specially noted, we can provide special electrical motor and relevant control device.

  1. How to transport and install this production line equipment?

All equipments joint is adopted bolt connection, convenient assembling, easy to transport. Service engineer guides installation and trains staff in construction site.
