PEW Reinforced Jaw Crusher

General Details

PEW Reinforced Jaw Crusher

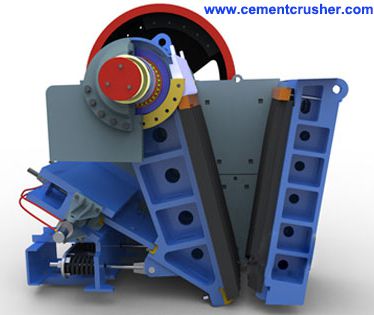

reinforced jaw crusher structure

Reinforced jaw crusher is desinged by Henan Zhenyuan Tehnology engineers by a long term research and combined with the most advanced technology of international, and all data of working condition was concerned this type of jaw crusher can satisfy clients on aspects of security, efficiency, big crusher radio, and low maintenance rate. HENAN ZHENYUAN SCIENCE & TECHNOLOGY CO., LTD is the world leading manufacturer of ore and rock precess machine, especially reinforced jaw crusher is trusted by the clients who pursue high quality machine by its superior performance and reliable quality, and it’s the first choice among many high efficiency equipments.

Performance Feature:

1. V type deep cavity design makes bigger crushing radio, feed size should be less than 1000mm, final product could processed under 300mm.
2. Over laod and iron-removal protection system can protect jaw crusher head from damage.

3. Jaw head design with new heavy-duty type, can endurance bigger material impact.

4. Jaw head discharge gate adopts wedge block hydraumatic adjustment system to improve accuracy, reduce labor intensity and increase efficiency of labor.

5. Humanistic safety protection design protects staff and machine from damage, security performance is increased by 20%.

6. Unique flywheel design can reduce vibrating of machine so that machine so that machine works steadier than before.

Working Principle:

Reinforced jaw crusher uses extrusion as the crushing principle. Motor driving belt and belt pulley forces sewing jaw swings around, when jaw plate moves to fixed jaw plate, material will be crushed and grinded, when sewing jaw and sewing plate moves backwards forced by exxentric shaft and spring, crushed material will be discharged from the bottom of machine. With the constant moving of motor, volume production would be accomplished.

jaw crusher working









send inquiry

If you have some questions about our products, please feel free to fill out the form below, and we will contact you within 24 hours. Rest assured that we won’t reveal your information to anyone.

Your Name (required)

Your Email (required)

Subject

Your Message

Technical Data
Reinforced Jaw Crusher:
Model Feeding Open Size (mm) Max.Feeding Size (mm) Adjustable Size of Discharge Opening(mm) Capacity (t/h) Motor Power (KW) Weight       (t) Dimension   (mm)
PEW180Х1300 180Х1300 160 10-30 12-35 30 6 1320Х2150Х1175
PEW250Х1000 250Х1000 220 20-40 18-58 30 5.6 1400Х1850Х1310
PEW250Х1200 250Х1200 220 20-40 22-72 37 6 1450Х2150Х1175
PEW250Х400 250Х400 220 20-60 5.5-22 15 2.8 1164Х1076Х1195
PEW400Х600 400Х600 360 35-85 18-72 37 6.5 1920Х1460Х1840
JC760Х1100 760Х1100 685 75-200 150-350 110-132 24 2600Х2500Х2200
JC840Х1100 840Х1045 760 100-225 200-500 132-160 32 3300Х2320Х3120
JC1100Х1200 1100Х1200 990 150-275 300-650 185-200 59 4140Х2660Х3560
More Pictures
reinforced jaw crusher in plant

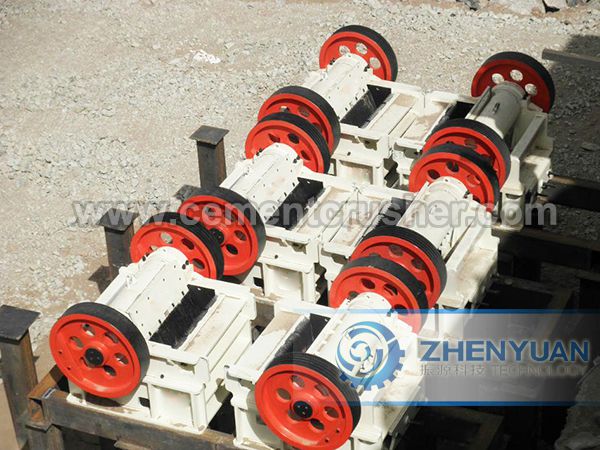

reinforced jaw crusher in plant 1

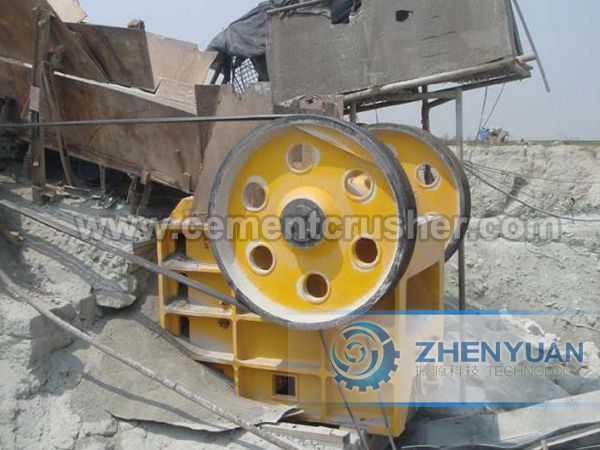

reinforced jaw crusher in plant 2

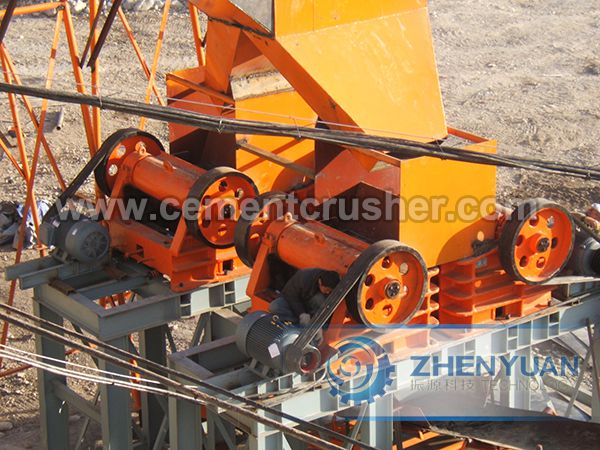

reinforced jaw crusher in plant 3
