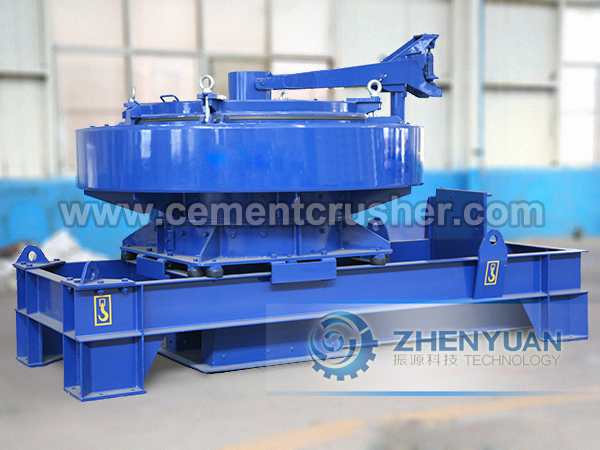

ZY High Efficiency Centrifugal Impactive Sand Making Machine

General Details

ZY series sand making machine is the technological achievements made by our company and the famous German mine crushing enterprise, it has introduced the most advanced design philosophy. Combined with domestic and overseas’ market demand and field production experience, this machine has overcome the defects of high energy consumption, heavy equipment, low production, low profits ;This machine using the rotor’s centrifugal force in high speed rotating, finish the crusing process is the way of send raw materials enter the cavity, then the raw materials will hit to the ring liner board through runner plate. After crushing, the mixed materials will trans fer to the vibrating screen by belt conveyor , then screening by vibrating screen , qualified materials will transfer to the end products store by belt conveyor, unqualified products will be return to the crushing machine and recrush, thus to form a closed circulation system.

  1. Sand making for all kinds of rocks (limestone, pebble, granite, basalt, diabase, all kinds of tailings, etc.)
  2. Commercial concrete mixing plant, asphalt mixing plant ‘s aggregate and road surface, construction, aggregate processing.
  3. Water conservancy and hydropower, highway, high-speed railway and passenger dedicated line, bridge, airport runway, municipal engineering,the sand production and stone plastic of those high-rise building.
  4. Building material, metallurgy, chemical industry, mining, fire-proof material, cement, abrasive materials industry such as broken.
  5. High abradability and disintegration of secondary crushing,   sulfur, steel slag, construction waste removal and crush of thermal power, metallurgy industry, also other environmental protection projects.
  6. Glass, quartz sand and other high purity raw materials production and processing.
  7. Also using in the production of dry mortar
Equipment Character
  1. Feed large particle size (beyond  the limit of conventional vertical shaft impact crusher feed particle size)
  2. Improve double productivity
  3. Ultra-low power consumption (Energy consumption reduced by 50%)
  4. Reduce clients using cost
  5. Optimization internal equipment structure, reduce material machining process in the cavity
  6. Simple structure, easy to maintaining, easy to replace
  7. Double cavity shape design, can satisfy the different requirements of aggregate (sand and plastic)
  8. Hydraulic lid device, provide users with convenient, fast, maintenance and maintenance
  9. There is no material in the cavity body production jams.
  10. The design of impeller  adopts modular design, which  the maintenance is easy and  using cost is low.


Technical Data
Model Feed size(mm) Capacity


Rotor diameter


Outlet number Rotate speed


Motor power




ZY1624 ≦68mm 40-120 900*220 2 80 110-160 7800
ZY2028 ≦89mm 100-380 1210*220 2 70 160-400 12200

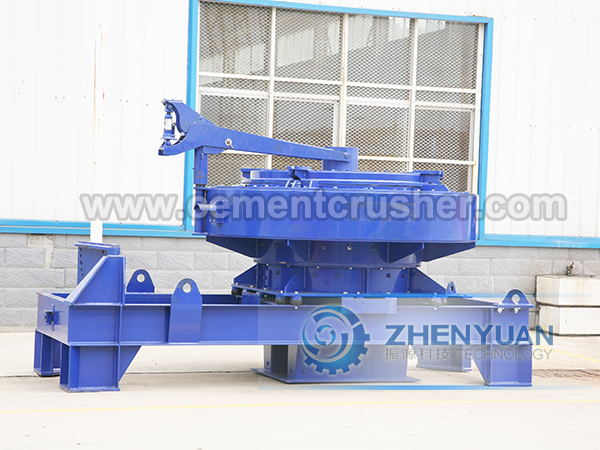

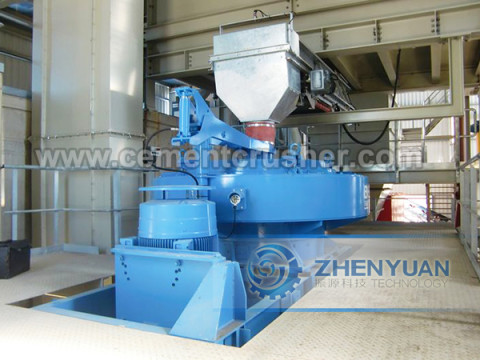

More Pictures
sand making machine 2

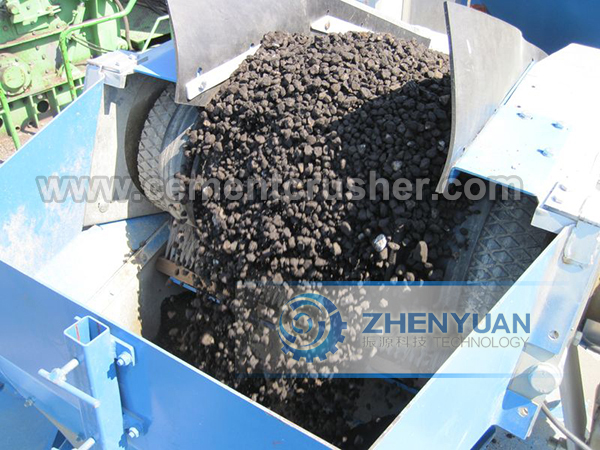

sand making machine 3
