Single-cylinder Hydraulic Cone Crusher, Your Best Choice for Rock Crushing

In order to screen the right rock, the rock crushing has been the indispensable technological process in the industries of metallurgy, mining, building materials, chemical, roads and railways etc. At present, the jaw crusher, impact crusher and spring cone crusher are widely favored by users by virtue of simple structure, low price and easy operation, but there are also obvious defects, such as low production efficiency, small crushing ratio, short life of wearing parts.

single cone crusher structure

Therefore, in view of the above defects, the single-cylinder hydraulic cone crusher adopting advanced hydraulic technology was born. This kind of crusher has realized the hydraulic protection with higher safety performance and  convenient and fast hydraulic adjusting discharging mouth way, simplifying the structure, reducing the weight, easy to control automatically, gradually becoming a rising super star in the crusher family.

The single-cylinder hydraulic cone crusher structure looks simple, but it is on behalf of the whole crusher industry’s highest level from design, manufacture to technology process. The single-cylinder hydraulic cone crusher cavity shape is a space being composed of moving cone liner outside surface and fixed cone liner inside surface, so the optimal design of the crushing cavity is the key to its structural design.

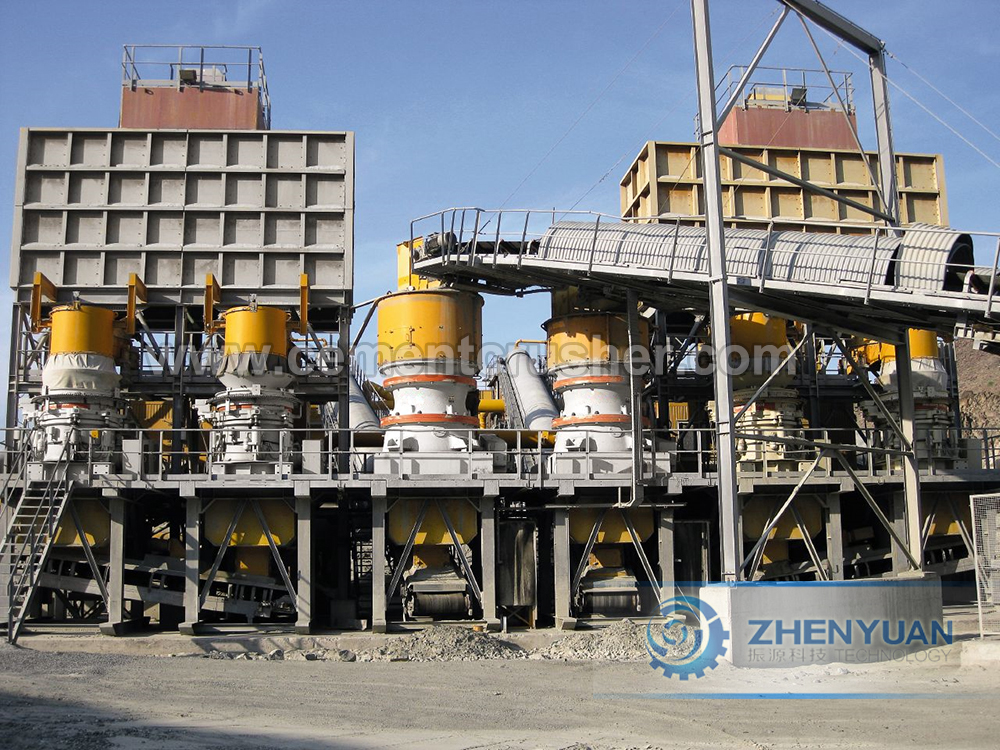

Single-cylinder Hydraulic Cone Crusher

Zhenyuan Technology’s crusher R&D specialists studied the influencing factors of liner wear, such as material hardness and abrasive, crusher feeding way, operating conditions etc, and found the liner wear characteristics and wear regulation, thus designed the best cavity type. The single-cylinder hydraulic cone crusher mainly relies on the eccentricity of eccentric parts to work, when the moving cone of eccentric parts starts to work, the absolute self-rotating angular velocity relative to fixed cone is sum of the eccentric shaft sleeve angular velocity and the moving cone relative angular velocity relative to eccentric shaft sleeve. As a result of mastering the moving cone motion law, the experts confirmed the best motion state when designed.

So Zhenyuan Technology’s single-cylinder hydraulic cone crusher is a perfect combination of material science, optimization design and CNC machining technology, is also another perfect combination of eccentricity stroke, crushing speed and crushing cavity design with high performance. From limestone to basalt, stone production to ore crushing, it can provide incomparable crushing performance in various kinds of medium-crushing, fine-crushing and superfine-crushing work, with the special significance of across time.
