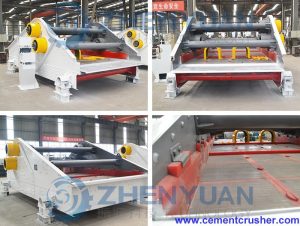

GPS High Efficiency Dewatering Screen

Main Function:

Screening, Dewatering, Desliming

Application Field:

It is mainly used in classification and dewatering for granule, such as coal slime and other tailings.

Feature:

1. Connecting by ring-grooved rivets, hard deformation, stronger than welding.

2. Uses linear vibrations which are generated by an out-of-balance drive

3. Small amplitude (3~5 mm), high frequency (25 Hz). So the screens are very suitable for dewatering.

4. Side plate’s material is Q235A or Q245A, thickness can be 8~10 mm.

5. Screening media is stainless steel strip-crack screen plate.

Model GPS-12×31 GPS-14×31 GPS-18×37 GPS-20×41 GPS-21×45
Feeding Density (%) ≥45 ≥45 ≥45 ≥45 ≥45
Capacity(t/h) 15-19 18-22 28-33 30-38 36-40
Screening Surface Size(mm) 1200×3100 1400×3100 1800×3700 2100× 4100 2100×4500
Sieve Pore Size(mm) 0.15-0.75 0.15-0.75 0.15-0.75 0.15-0.75 0.15-0.75
Double Amplitude(mm) 3-5 3-5 3-5 3-5 3-5
Vibration Frequency(Hz) 25 25 25 25 25
Motor Model Y112M-4 Y132S-4 Y132M-4 Y160M-4 Y160L-4
Power(KW) 2×4.0 2×5.5 2×7.5 2×11 2×15
Voltage(v) 380 380 380 380 380
Dimension(mm) L*W*H 3020×2400×2100 3020×2600×2100 3527×3060×2130 4570×3150×1660 4970×3350×1820

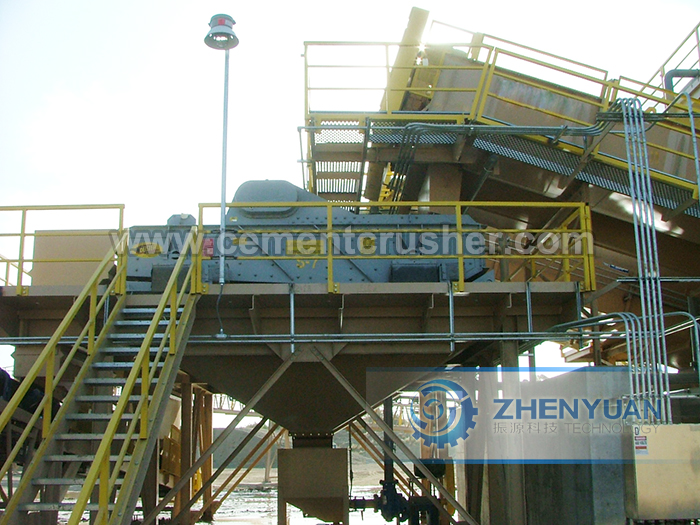

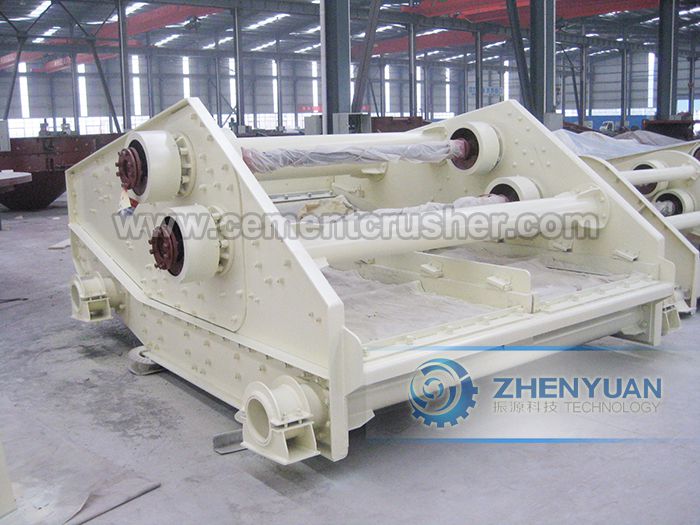

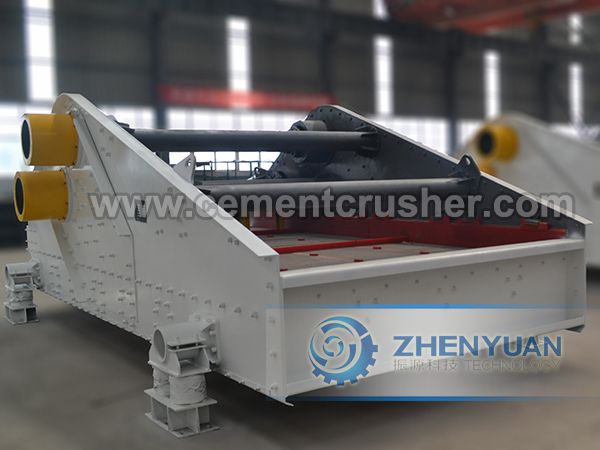

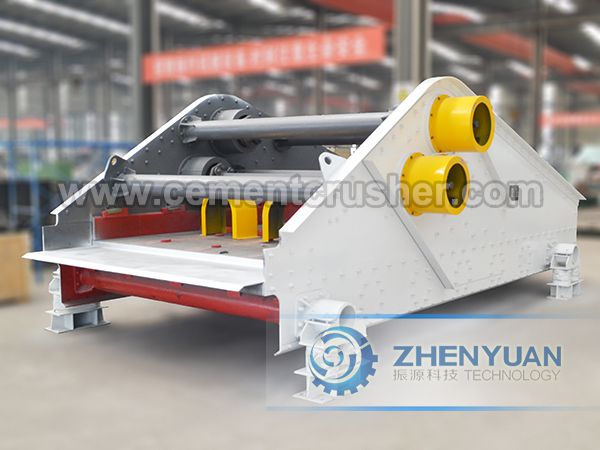

dewatering screen 8 dewatering screen 5 dewatering screen 9 dewatering screen 7
